<h1>LC1D32 - Telemecanique contactors in Nigeria</h1>

LC1D32 - Telemecanique Contactor LC1D32, TeSys D, type LC1D, 3P, 3PH, 50A, 600V, 10HP @ 240V, 20HP @ 480V, 30HP @ 600V, complete with 110/120V AC coil, and 1 N/O auxiliary contact, AC magnetic contactor, suitable for use with LC1-D series motor control systems.

Time delay LATD2 contact block in Nigeria

LADT2 is a TeSys time delay auxiliary contact block with 1NO + 1NC pole contact composition. It is approved by CSA, UL, BS 4794, EN 60947-5-1, IEC 60947-5-1, NF C 63-140 and VDE 0660 standards.

• Front mountable on-delay timer
• Rated insulation voltage of 690V conforming to IEC 60947-5-1 standard
• Rated operational voltage of 690VAC at 25Hz to 400Hz
• Conventional free air thermal current of 10A at less than or equal to 60°C
• Irms rated making capacity of 250A at <= 690VDC and 140A at <= 690VAC conforming to IEC 60947-5-1
• Mechanical durability of 5Mcycles, time delay range from 1sec to 30sec
• Minimum switching current of 5mA and switching voltage of 17V
• IP2x degree of protection conforming to VDE 0106
• Ambient air temperature for operation range from -40 to 70°C

Allen Bradley 1784-PCC B Communicators in Nigeria

Control unit Micrologic 5.0E Circuit breakers in Nigeria

Micrologic 5.0E (Energy meter) is an electronic control unit used on Masterpact NT 06 to 16 and Masterpact NW 08 to 63 fixed circuit breakers. This control unit has a selective protection (LSI) and is designed to protect power circuits and loads. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. Micrologic 5.0E indicates overloads with an Alarm LED. It is able to display the trip cause through 3 others LEDs. Micrologic 5.0E is equipped with a digital LCD screen that displays the active energy with 2% accuracy. This control unit can be associated with fixed Masterpact NT and NW basic frame.

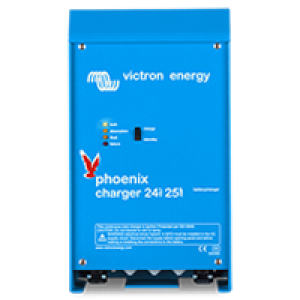

Phoenix charger 24/25 in Nigeria

Adaptive 4-stage charge characteristic: bulk - absorption - float - storage.

The Phoenix Charger features a microprocessor controlled "adaptive" battery management system that can be preset to suit different types of batteries. The "adaptive" feature will automatically optimize the process relative to the way the battery is being used.

The right amount of charge: the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged. Preventing damage due to excessive gassing. If in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix Charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.

Less maintenance and aging when the battery is not in use: the storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

To increase battery life: temperature compensation, every Phoenix Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries and/or when important fluctuations of battery temperature are expected.

Battery voltage sense in order to compensate for voltage loss due to cable resistance: Phoenix Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage. Universal 90-265 V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) The chargers will accept a 90-400 V DC supply. Computer interface Every Phoenix Charger is ready to communicate with a computer through its RS-485 data port. Together with Victron VEConfigure software (can be downloaded from website), and the data link MK3-USB (see accessories) all parameters of the chargers can be customized.

Mastervolt Mass 24/25-2 Battery chargers in Nigeria

Mass battery chargers are specially designed for larger professional systems with batteries that have a higher capacity. As with the Ivo series, the basic technology here consists of high-frequency electronic components without any heavy or noisy transformers. Featuring an intelligent cooling concept, Mass chargers deliver maximum power even in warm engine compartments.

• LED display
• Two devices can be connected and used in parallel for even greater power output
• Suitable for every battery type - gel/AGM/lead-acid
• Load capacities from 50 to 250 Ah
• Reliable charger//power supply also with GMDSS approval
• Lightweight, stainless steel, anodised aluminium casing
• Includes temperature sensor
• MasterBus compatible

ComPact NSX400H Circuit breakers in Nigeria

This Compact NSX400H is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic Micrologic 2.3 M trip unit, with 320A rating. Micrologic 2.3 M trip unit provides adjustable long time and short time protections, and fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX400H is part of Schneider Electric EcoStruxure Power architecture.

ComPact NS1250N Circuit breaker in Nigeria

This Compact NS1250N is a complete 3 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. The circuit breaker can be manually operated with ON, OFF or "push to trip" buttons. This product embeds an electronic Micrologic 2.0 trip unit, with 1250A rating. Micrologic 2.0 trip unit provides adjustable long time and instantaneous protections. This 3 poles version (327mm x 210mm x 147mm) comes with a variety of optional functions and accessories. It is compliant with IEC 69947-1 and IEC60947-2 international standards and marine specifications. Compact NS1250N is part of Schneider Electric EcoStruxure Power architecture.

Carlo Gavazzi DPC01DM48 Relays in Nigeria

Carlo Gavazzi DPC01DM48 pressure switches in Nigeria
